Fixed Drive Chain Conveyor Rollers – Strong & Reliable Performance

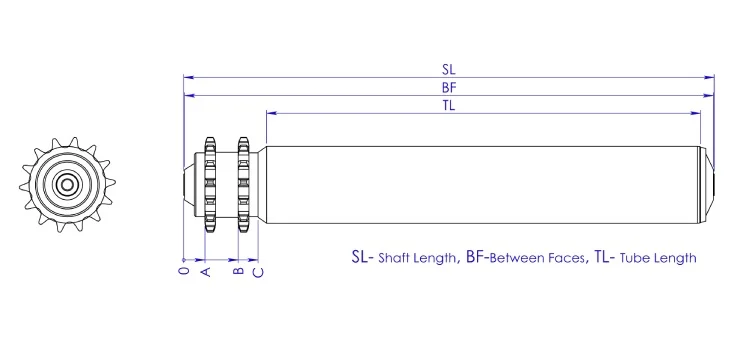

The AIROLL Series 100 Chain Driven Conveyor Rollers are ideally suited to be fitted in light duty and medium duty roller conveyors. conveying containers, pallets, drums as well as other light and medium unit loads.
Product Features and Options
Bearings are protected from dust
In Series 100 Chain Driven Conveyor Roller Deep Groove Ball Bearing permanently sealed in Polymer Bearing Housing and fitted with welded Steel sprockets
Single and Double Row Sprockets are available
These Rollers can bear maximum impact load on it
| Tube Ø x Thickness “mm” | Shaft Ø “mm” | Shaft Installation Type | Sprocket | Load Bearing “Kg” | |||
|---|---|---|---|---|---|---|---|
| FT | FTFM | ||||||
| 40 x 1.5 | 12 | • | ⅜”-15T | 55 | |||
| 50 x 1.5 | 14 | • | • | ½”-14T | 100 | ||
| 15 | • | ||||||
NOTE: FT : Female Thread | FTFM : Female Thread with Flat Milled | |||||||

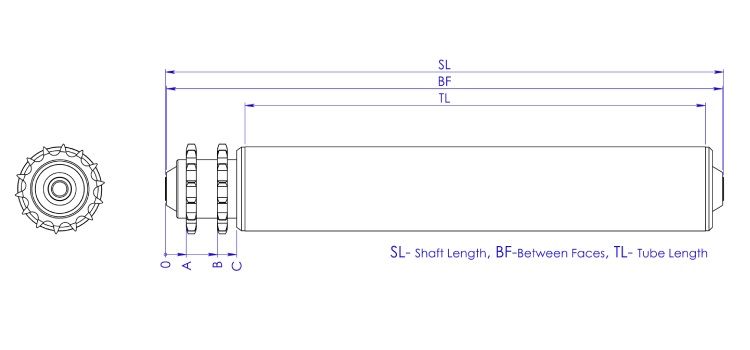

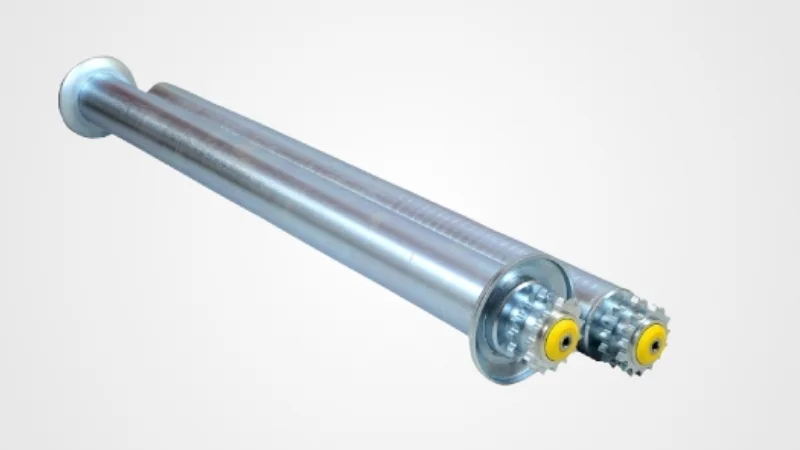

The Airoll Series 200 Chain Driven Conveyor Rollers are especially suited to convey heavy duty materials like pallets, containers, drums and other heavy unit loads.
Product Features and Options
Bearings are replaceable
High Temperature Resistance
These rollers bear heavy loads
Series 200 Chain Driven Conveyor Rollers are welded with solid metal end cap & fitted with welded Steel sprockets.
Customize Sizes available
Various Tube & Shaft Options
Material Option: Mild Steel | Stainless Steel
Single and Double Row Sprockets are available
| Tube Ø “mm” | Tube Thickness “mm” | Shaft Ø “mm” | Shaft Installation Type | Sprocket | Load Bearing “Kg” | |
|---|---|---|---|---|---|---|
| FT | FTFM | |||||
| 60.3 | 2.6 / 3.3 | 15 | • | • | ½”-14T | 200 |
| 17 | • | • | ||||
| 76.2 | 3.4 / 4.2 | 17 | • | • | ⅝”-13T / ⅝”-15T | 350 |
| 20 | • | • | ||||
| 88.9 | 3.0 / 3.7 / 4.5 | 20 | • | • | ⅝”-15T / ⅝”-18T | 600 |
| 25 | • | • | ||||
NOTE: FT : Female Thread | FTFM : Female Thread with Flat Milled | ||||||

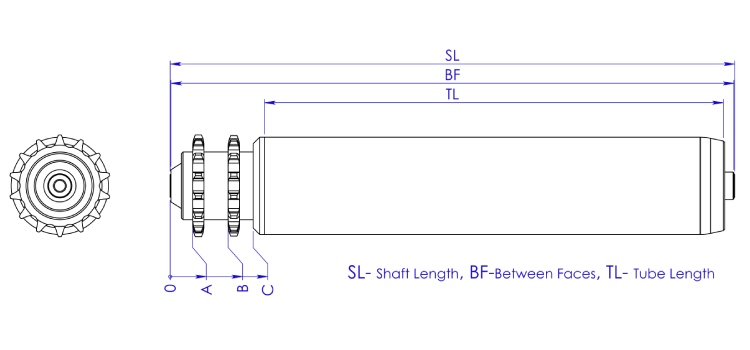

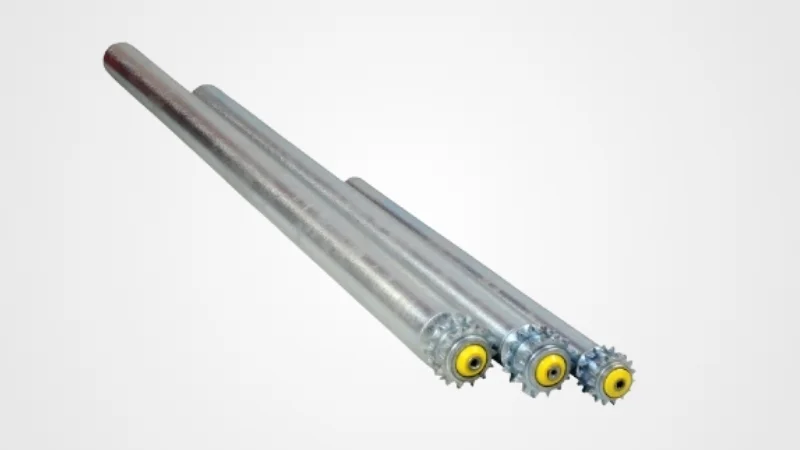

The AIROLL Series 300 Chain Driven Conveyor Rollers are ideally suited to be fitted in medium and heavy-duty roller conveyors.
Product Features and Options
Various Tube & Shaft Options
These rollers bear medium and heavy loads
In Series 300 Chain Driven Conveyor Roller Deep Groove Ball Bearing permanently sealed in pressed metal cap bearing housing and fitted with welded Steel sprockets
Material Option: Mild Steel | Stainless Steel
Single and Double Row Sprockets are available
| Tube Ø x Thickness “mm” | Shaft Ø “mm” | Shaft Installation Type | Sprocket | Load Bearing “Kg” | |||
|---|---|---|---|---|---|---|---|
| FT | FTFM | ||||||
| 50 x 1.5 | 15 | • | • | ½”-14T | 120 | ||
| 60 x 1.5 | 15 | • | • | ½”-14T | 150 | ||
| 76 x 2.0 / 76 x 3.4 | 17 | • | • | ⅝”-13T / ⅝”-15T | 250 | ||
| 20 | • | • | |||||
|
NOTE: FT : Female Thread | FTFM : Female Thread with Flat Milled |
|||||||
At Airoll, we emphasize on the manufacture of the high-quality and long-lasting conveyor rollers for different industries. Our core mechanism of services is to render easy transportation of goods with our product range. Smooth rotation, dust-roof composition and low noise functioning of our chain driven conveyor rollers make them trusted material solutions in India. The dimensions of these rollers are subject to client preferences along with other product specifications. Our fixed drive chain conveyor rollers are beneficial for packaging industry and implementation of machine chains. If you have had a hard time in moving cartons, crates, boxes of higher load capacity, then, our chain conveyor rollers are worth an investment!
Why Opt For Fixed Drive Chain Conveyor Rollers?
Airoll has carved its niche in the marketplace as the prominent Fixed Drive Chain Conveyor Rollers manufacturer in India. We understand the global industry wise demands of transporting goods without any mismatch. Thus, we bring the convenient way of assembling and implementing conveyor rollers with chained mechanism for making operations better. Whether you are looking for long life structure of these rollers or planning to invest on sure-shot functioning tool, Airoll encompasses all the factors. Our professionals possess experience in managing and assembling the Fixed Drive Chain Conveyor Rollers on the behalf of organizations. Hence, if you don’t have sufficient knowledge about the application and implementation of the material solutions, then, count on our experts!
download brochure
Download our document for product details and workflow insights.
